Key Features

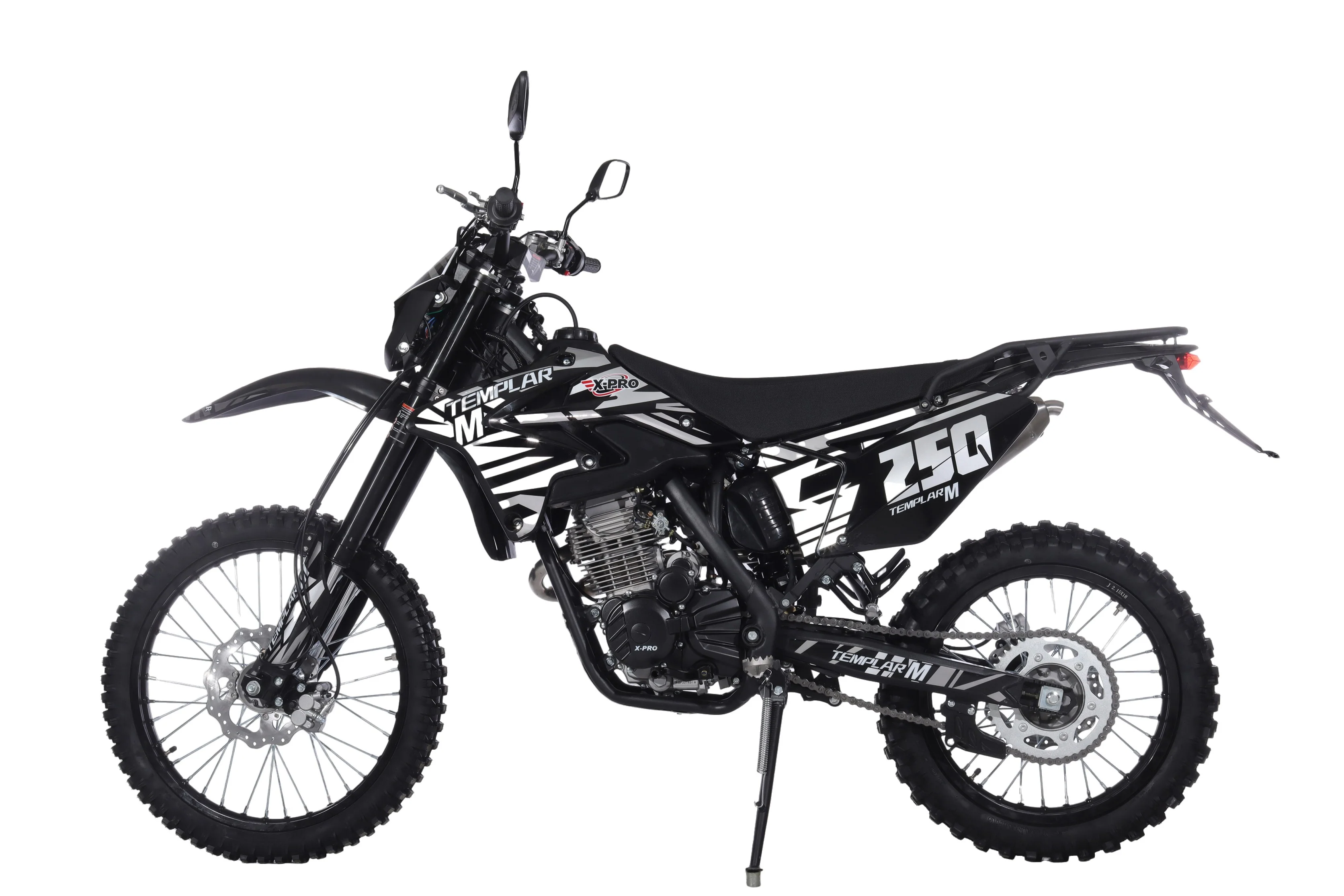

New Upgraded TEMPLAR M Dirt Bike with All Lights.

• Main Features:
1. Free Upgraded Zongshen CB250F(ZS172FMM) Engine($250 value): Comes with 249.9cc Zongshen engine, which is expensive, reliable, powerful and long life span.
2. Free Upgraded Inverted Forks($100 value): Has the advantages of favorable shock insulating effect, long service life, safety and better stability.
3. Free Upgraded Better Quality Muffler ($100 value): Reduce engine exhaust noise and enable high-temperature exhaust gas to be discharged safely and effectively!
4. Free Upgraded Digital Speedmeter, LED Headlight, LED Tail Light, and LED Turn Signal Indicator($150 value) There are some good chance for this dirt bike to be registered for on road use in many states, please check with your local DMV for details, we do not make any gurantee on this.

• X-PRO Newest Design Model on the market! 249.9cc Design for Adults!
• 249.9cc Zongshen CB250F(ZS172FMM) Engine! High Quality Zongshen Brand Engine, which is expensive, reliable, powerful and long life span.
• 5-Speed Manual Transmission Take fully control of the dirt bike, Pro's Choice!
• Electric & Kick start Electric start for easy starting well the kick start is being used as a back uo plan in any unexpected situations.
• Big 21"/18" knobby wheels get ready for great traction on a variety of tracks and terrain.
• With LED Headlight, LED Tail Light, LED Turn Signal Indicator.
• Front and Rear Hydraulic Disc Brakes provide strong, linear stopping power.
• 57.9 inch great Wheel-base, which provides great rider control and comfort.
• High Performance Muffler
• Oversized Foot Pegs
• Off Road Use Only
• Some Assembly Required: Front suspension, handlebar, Lights etc

Specifications

Model Number	DB-K014
Engine/Drive Train
Engine	Zongshen CB250F(ZS172FMM) 249.9cc, 4 stroke
Cylinder Arrangement	Single
Cooling System	Air Cooled
Compression Ratio	9.25:1
Bore x Stroke	72x61.4
Max Power	14kw / 8500rpm - 19 Hp
Max Torque[N.m/r/m]	18/6500 N.m/r/min
Transmission	5-Speed Manual
Final Drive	#520 Chain
Start System	Kick / Electric
Max Speed (MPH)	60+ (Depending on Riders Weight and Road Conditions)
Ignition Type	CDI
Carburetor	PE28
Battery	12V/5AH
Frame /Body/ Suspension / Brakes
Frame	Steel Frame
Front Suspension	Inverted, L=910mm, None-Adjustable
Rear Suspension	L=460mm, None-Adjustable
Front Brakes	Hydraulic Disc Brake, 240mm Disc
Rear Brakes	Hydraulic Disc Brake, 240mm Disc
Front Tires	80/100-21
Rear Tires	110/100-18
Handle Bar Tube	Aluminium Fat bar
Exhaust/Pipe	Stainless steel
Capacities / Dimensions
Weight Capacity(lbs)	440
Net Weight (lbs)	258
Gross Weight (lbs)	326
Overall Length	89"
Overall Width	34.6"
Overall Height	55.5"
Carton dimension (L*W*H/in)	68" x 18" x 34"
Seat Height	36.2"
Wheelbase	57.9"
Min Ground Clearance	11.4"
Fuel Capacity	2.3gal./9L
Safety / Control
Engine Kill Switch	Yes
Foot Brake	Yes
Horn	Yes
Headlight	Yes, LED
Tail Light	Yes, LED
Turn Signal Indicator	Yes, LED
Speedmeter	Yes, Digital Speedmeter
Others
EPA Approved	Yes
